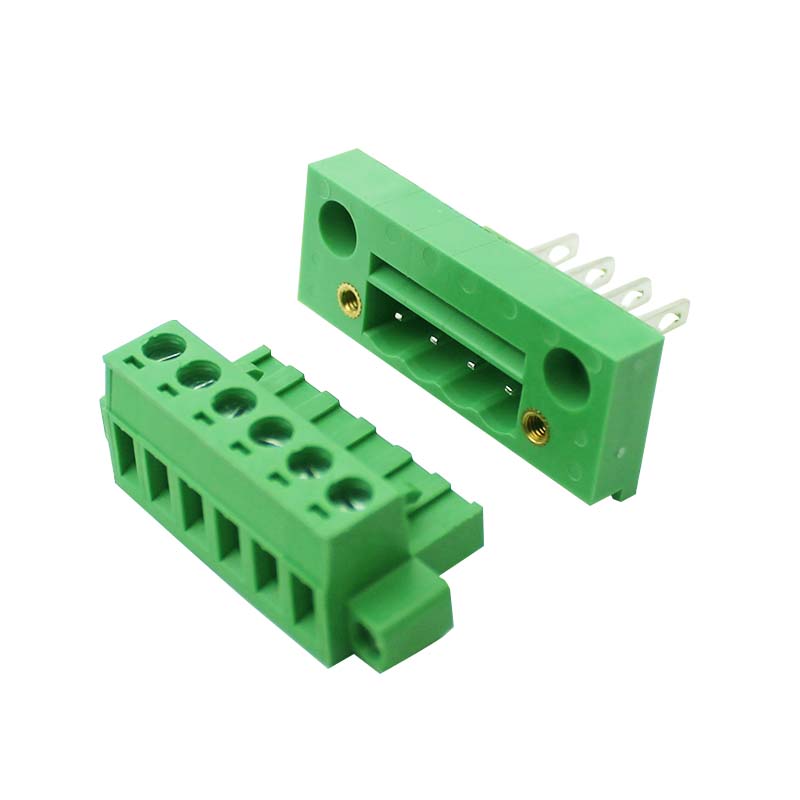

15EDGWB/YE870/KF1024 through wall terminal block

MODEL:FPM2.5-XX-508-06
Rated voltage: 300V
Rated current: 16A
Wire range: 28-12AWG(0.5-2.5mm2)
Withstanding voltage: AC2500V/1Min
Ambient temperature: -40°C~+105°C
Strip length: 8.0-9.0mm
Pitch:5.0mm/5.08MM
Poles:2P-24P
Housing:PA66 UL94V-0
Pin header:Cupper alloy

Terminal blocks and strips are insulated connections that fasten two or more wires together and consist of an insulating frame and a clamping system. AOSI's terminal blocks and strips offer a reliable connection with a large variety of technologies and ranges to serve many industrial applications from control to power distribution.

Dongguan AOSI Electronics Co.,Ltd is the collection development, production, sales in one of the specialized terminals, terminal, terminal, connector, connectors manufacturers, and has a number of high-quality management team and technical elite, through nearly ten years of careful management, products through the UL, VDE, CB, CQC, ROHS and other certification, the factory has passed ISO9001 : 2008 quality system certification. The main products are: CA series shrapnel type wiring terminal, CT series lifting type wiring terminal, CP series slide-in terminals, CS series screw free press buckle type connection terminal, CK series, CZ series fence type wiring terminal through type wiring terminal, a variety of single double pin and IC socket. Standing specifications have 2.54, 3.50, 3.81, 3.96, 5, 5.08, 6.35, 7.50, 7.62, 8.255, 9.525, 10, 10.16, 11, 13.00mm.
